GLAZING OF PHILHARMONIC BUILDING IN CHARGE PARK IN MOSCOW

Object: Zaryad Park, Moscow
Type of work: Glazing

Implementation:

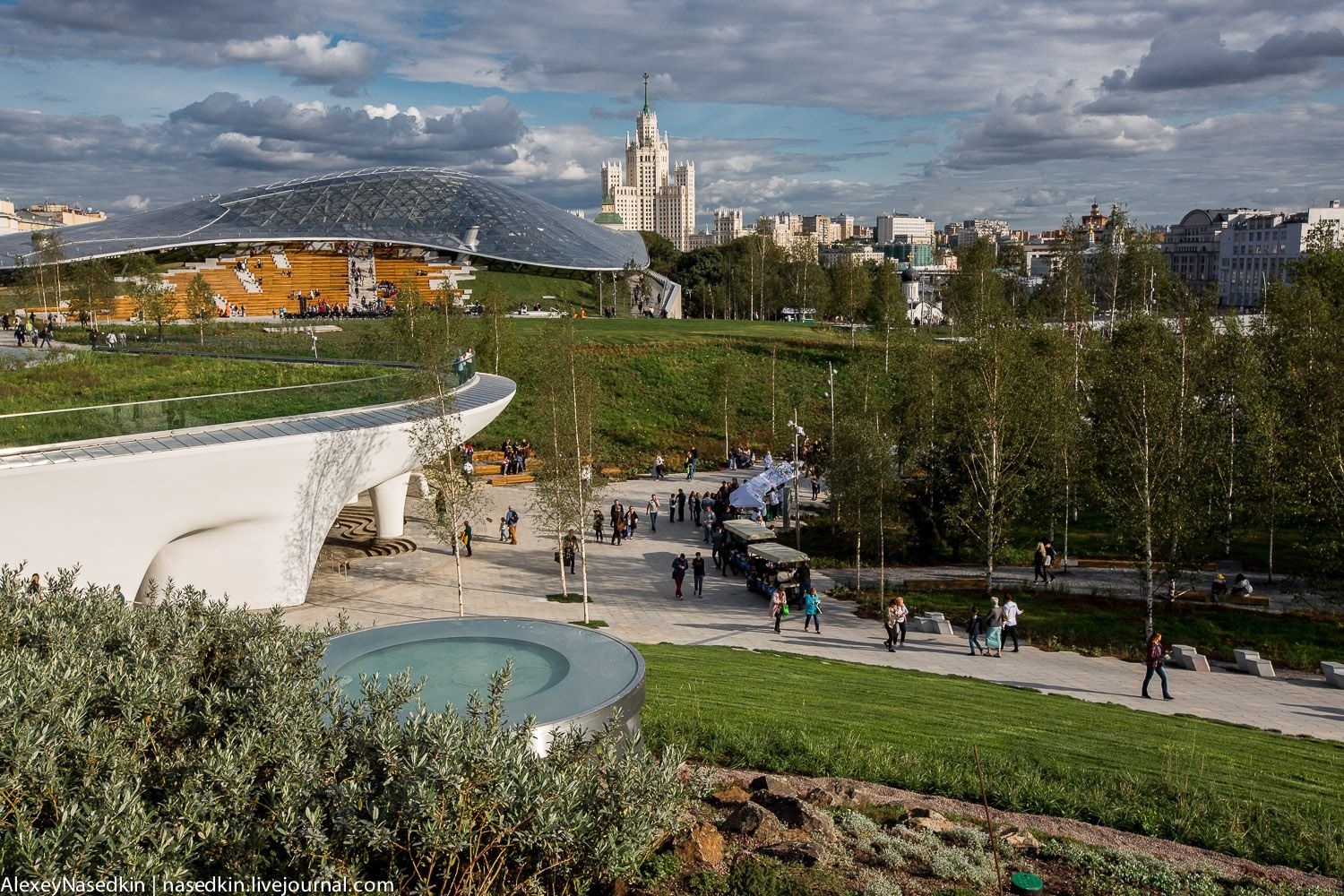

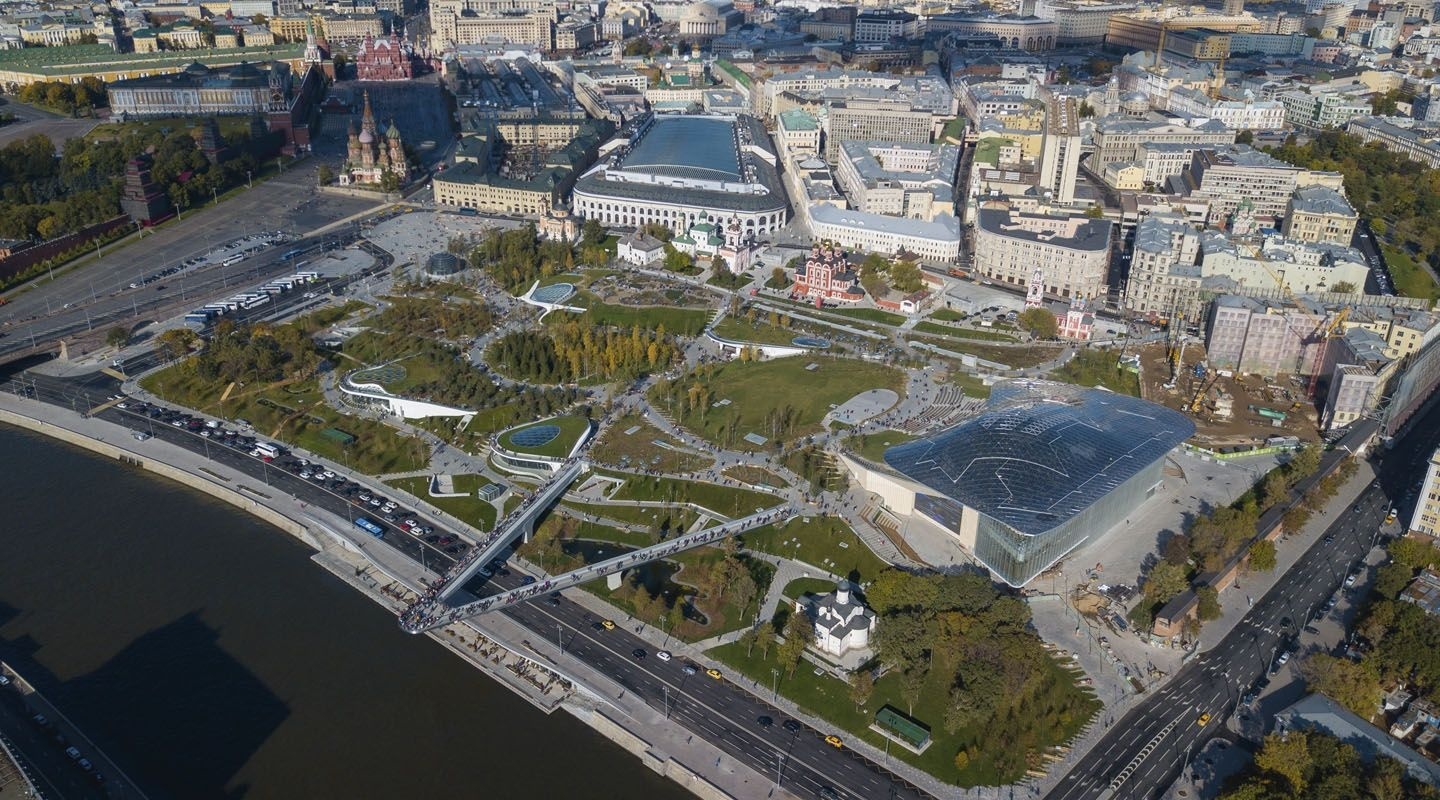

Zaryad Park - the newest cultural facility in the heart of Moscow. A unique space where nature, education, creativity and modern architecture are harmoniously combined.

It so happened that a whole squad of our equipment line worked on this object:

• Vacuum gripper ARLIFTER GS-500
• Vacuum gripper ARLIFTER GS-750
• Vacuum gripper ARLIFTER GS-850
• Vacuum gripper ARLIFTER F\R-1500
• Mini Crane Jekko SPX1275
• Mini Crane Jekko SPX527
• Mini Crane Jekko SPD360
• Mini Crane Jekko MPK20

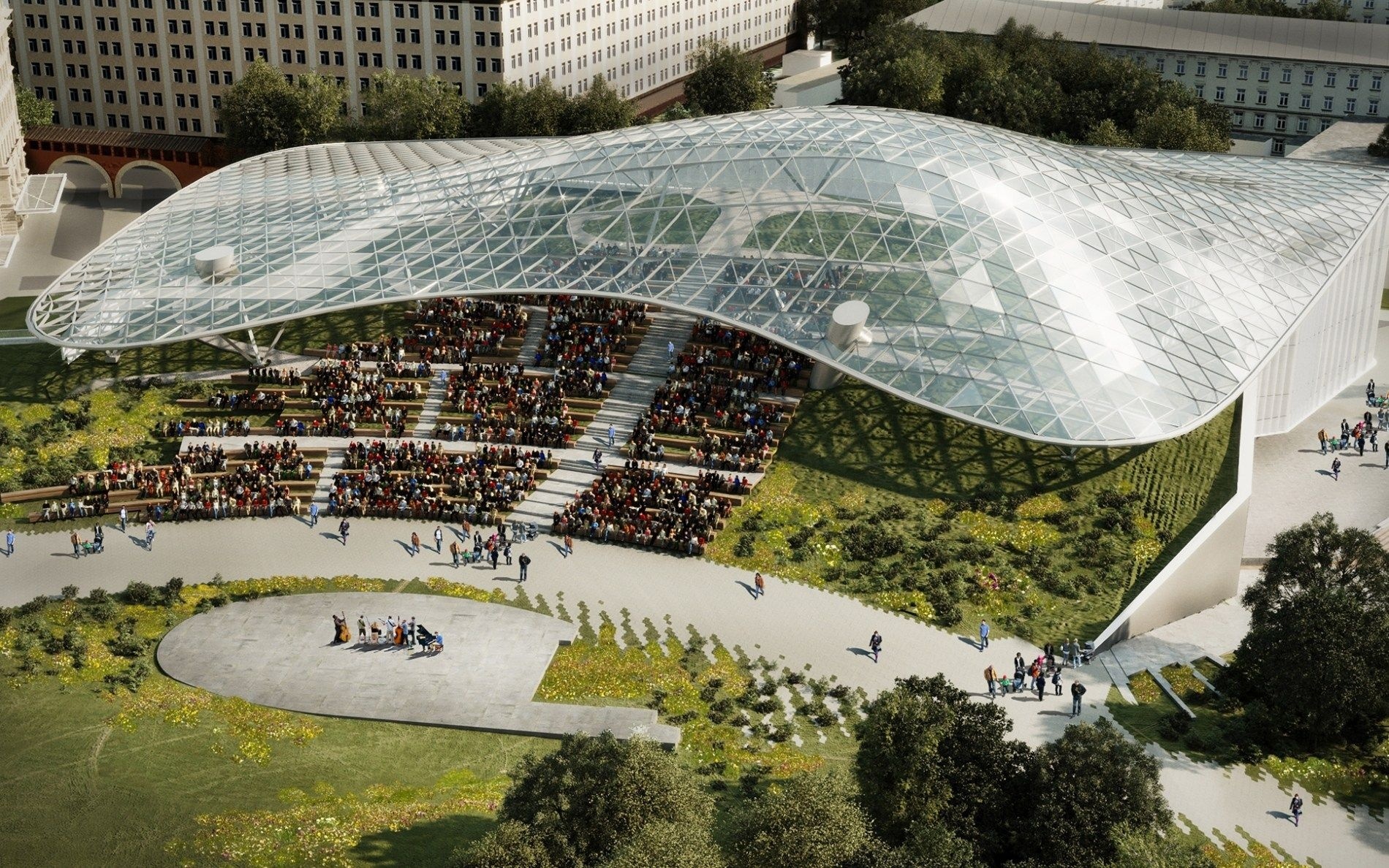

Arlift's technology produced the most complex glazing tasks for the Philharmonic building in Zaryadye Park.

We faced the following tasks:

• Complicated glazing at different angles of inclination, including at a negative angle
• Works in cramped conditions.

And only Arlift equipment was able to cope with the tasks!

Vacuum grippers ARLIFTER GS-500, GS-750, GS-850 were used for mounting glass of various weights - up to 850 kilograms. And the vacuum capture ARLIFTER F \ R-1500 was used when mounting glass weighing up to 1500 kilograms under the visor and at a negative angle with the help of traverse with counterweights.

But how to mount the glass when performing such complex glazing without lifting equipment?

Therefore, mini-cranes Jekko MPK20, SPD360, SPX527, SPX1275 were sent to the aid of vacuum equipment, having different payloads from 2 to 7.5 tons, but united by a common main feature - compactness and the ability to work in extremely constrained conditions.

Due to the unique features of technology and a wide range of ARLIFT, the glazing of the building of the Philharmonic was performed in a very short time.
