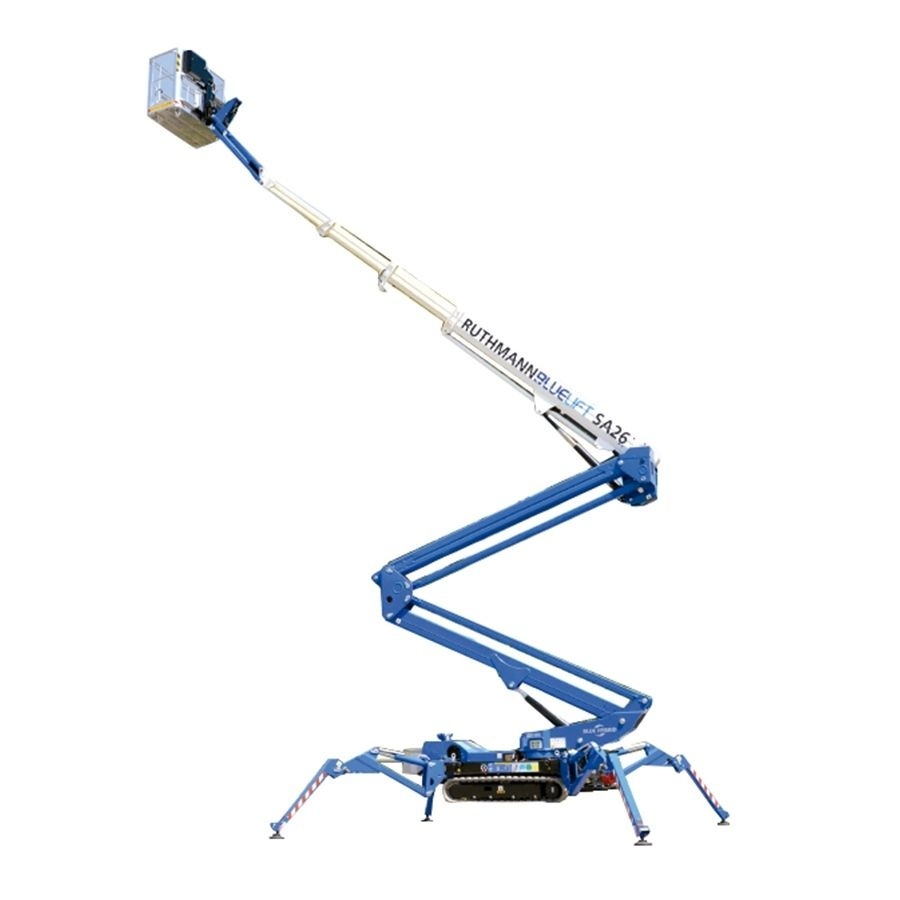

Spider-tower SA26

SA26-self-propelled crawler crank lift. Compact, powerful, and maneuverable. Lifting people to a height of 26 meters.

26 m

14.5 m

250 kg

1980 x 990 x 4910 mm

Buy Купить в лизинг

Compare

Payment in cash or by Bank transfer for legal entities.

Delivery to any point in Russia and CIS countries (delivery by Arlift or other transport company)

The time and cost of shipping the equipment consists of several factors such as availability of Arlift, availability in stock, final destination. All information must be specified before purchasing.

For more details about delivery and payment

Presentation. Spider towers and scissor lifts. pdf

Areas of application of the Arlift technique. pdf

Технические параметры

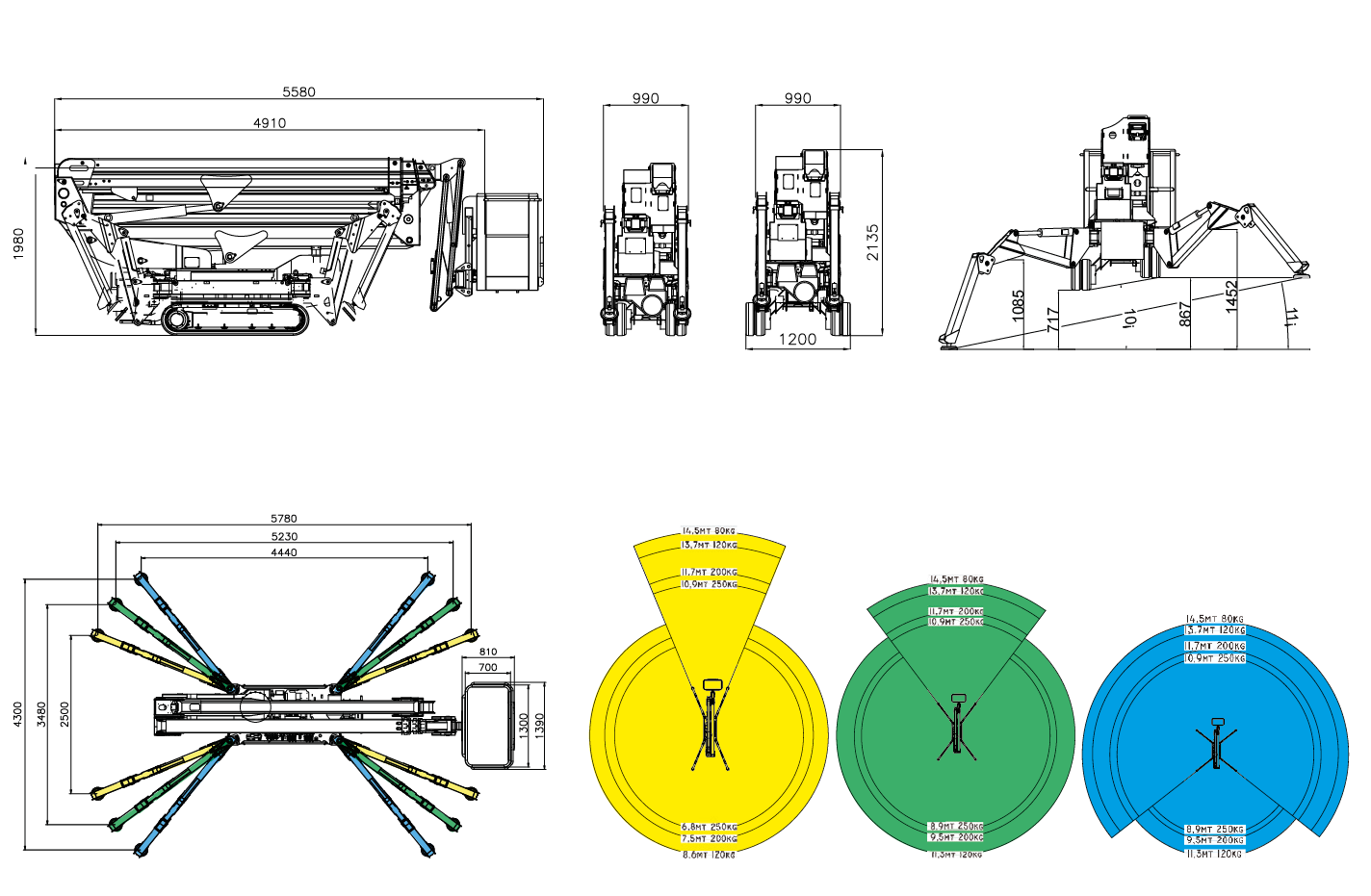

Габариты

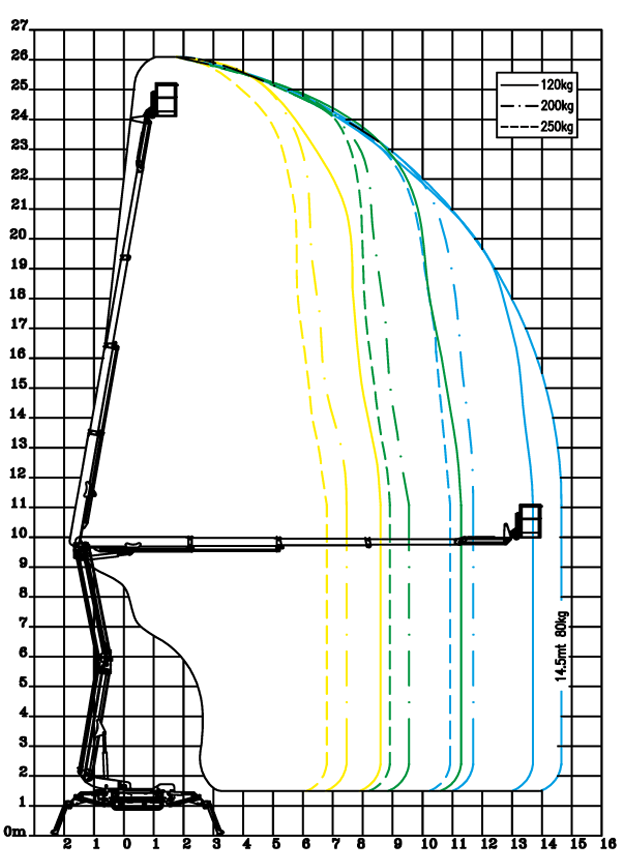

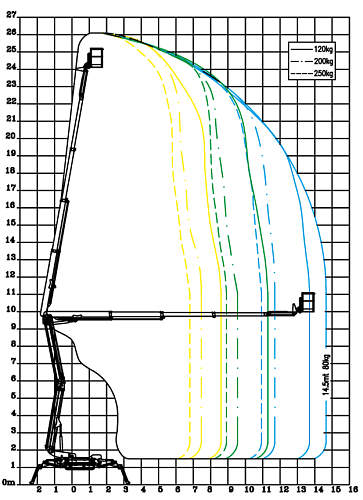

Диаграммы

Дополнительная комплектация

Type tower

crankshaft

Working height

26 m

Horizontal reach

14.5 m

Lifting capacity

250 kg

Weight

3350 kg

Size

5580 х 990 х 2135 mm

Engine type

petrol / mains (230 V -2.2 kW) / battery

Drive

Ice + electric.

Manufacturer

Bluelift

Guarantee

1 year

Additional feature

Removable basket

Basket rotation

The electric pump i-PerformingСЃ automatic start and stop

220 V outlet in basket

Wireless remote with interactive display and multi-language

System width adjustment caterpillars with independent axle

The ability to set the outriggers in three positions

Device limitations of the time

Automatic positioning of the tower in the center

Automatic start / stop of engines and speed control

Proportional and simultaneous electro-hydraulic control

Speed with double drive and control system security

The automatic locking system of caterpillars when you roll by more than 5В°

The ability to move the machine for transport with a raised arrow

Security system movements of the outriggers and boom

Emergency engine stop

A simplified system to provide emergency lowering of platform

Additional complete set

Air/water supply to the basket

Hatz 1b50 diesel engine

Non-marking tracks

Winter package

Custom color on request

Radio Control Hetronic

The asymmetric position of the outriggers

Adjustable track width and height

Lighting LEDs on each outrigger

BLUE LITHIUM option

BLUE HYBRID option

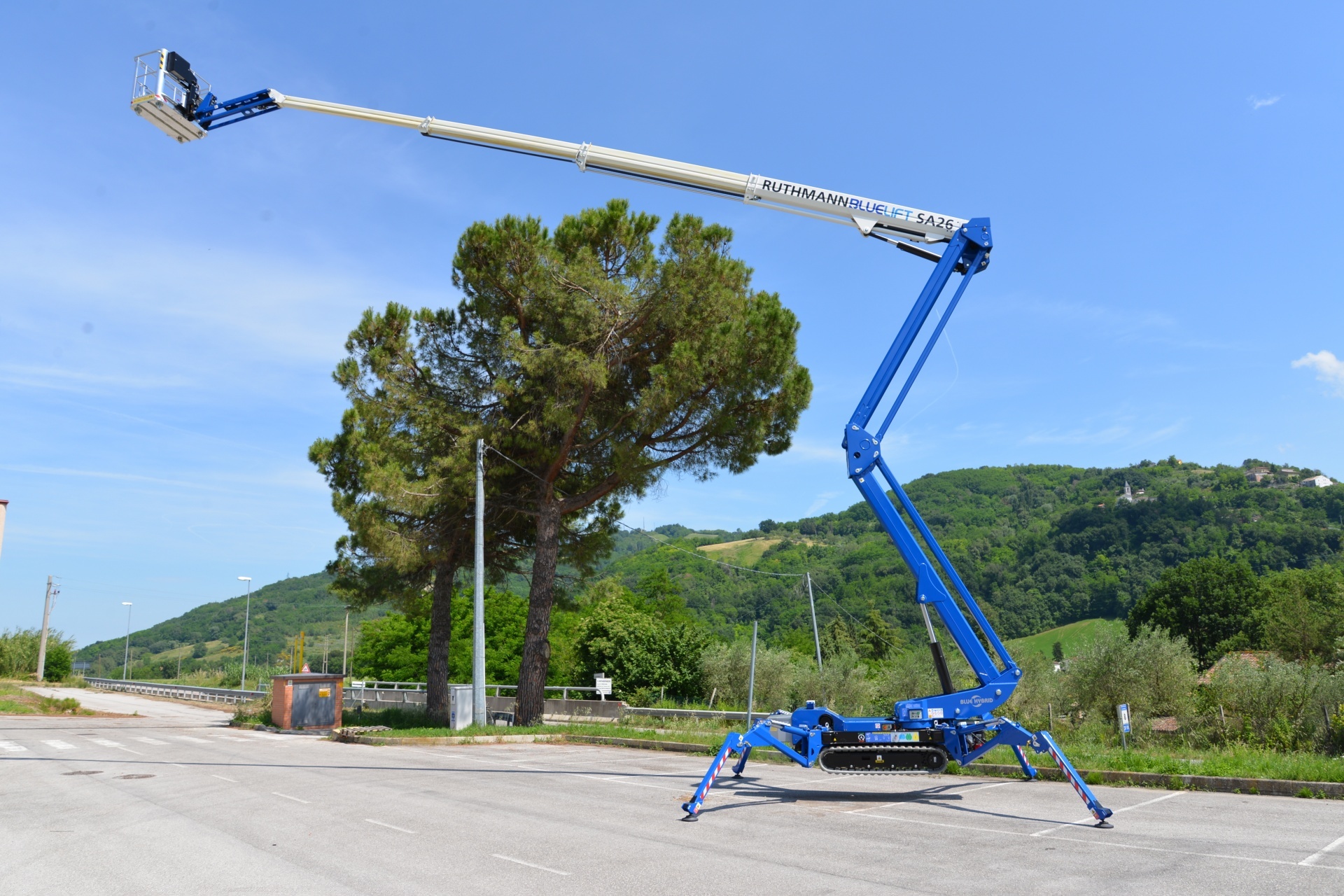

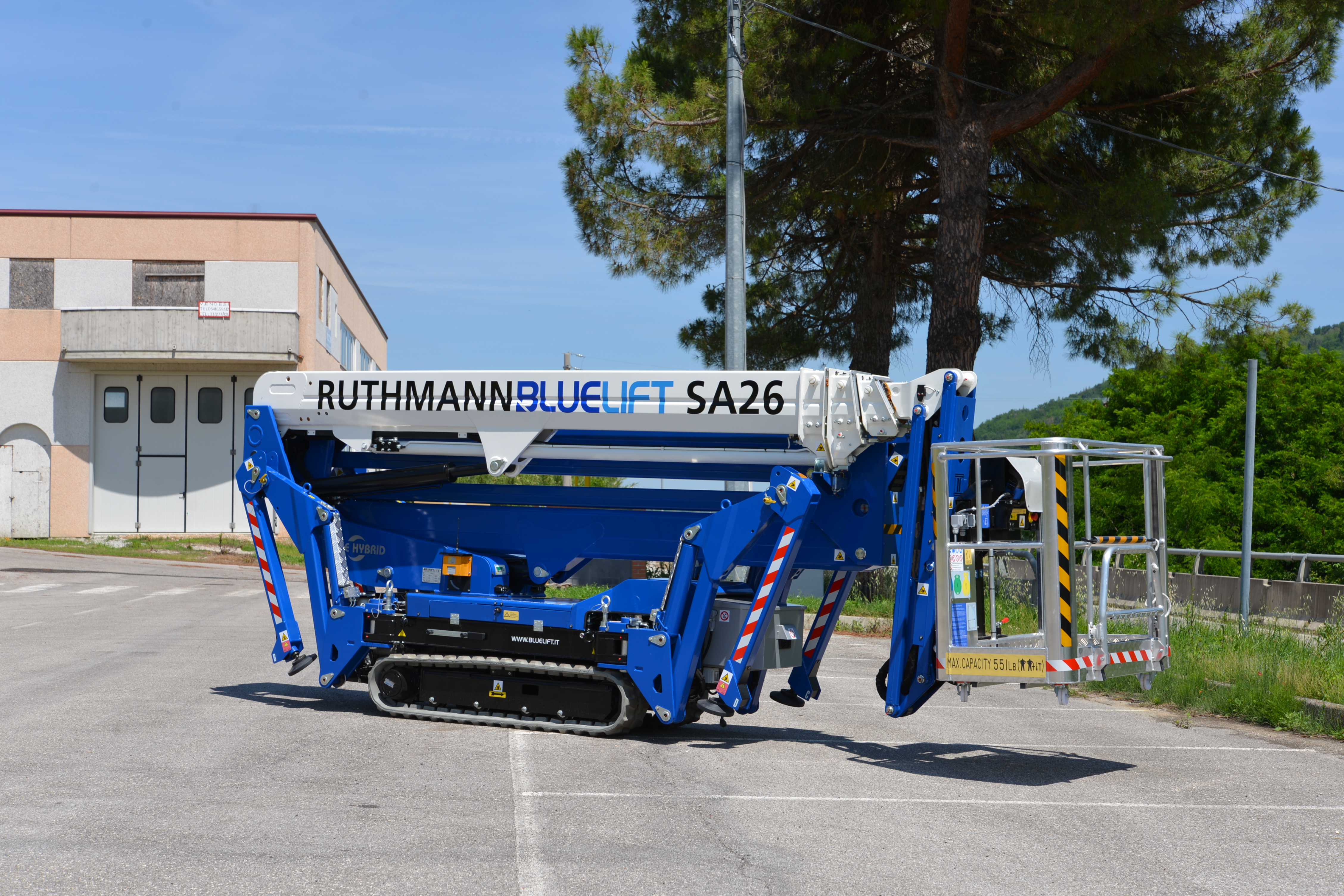

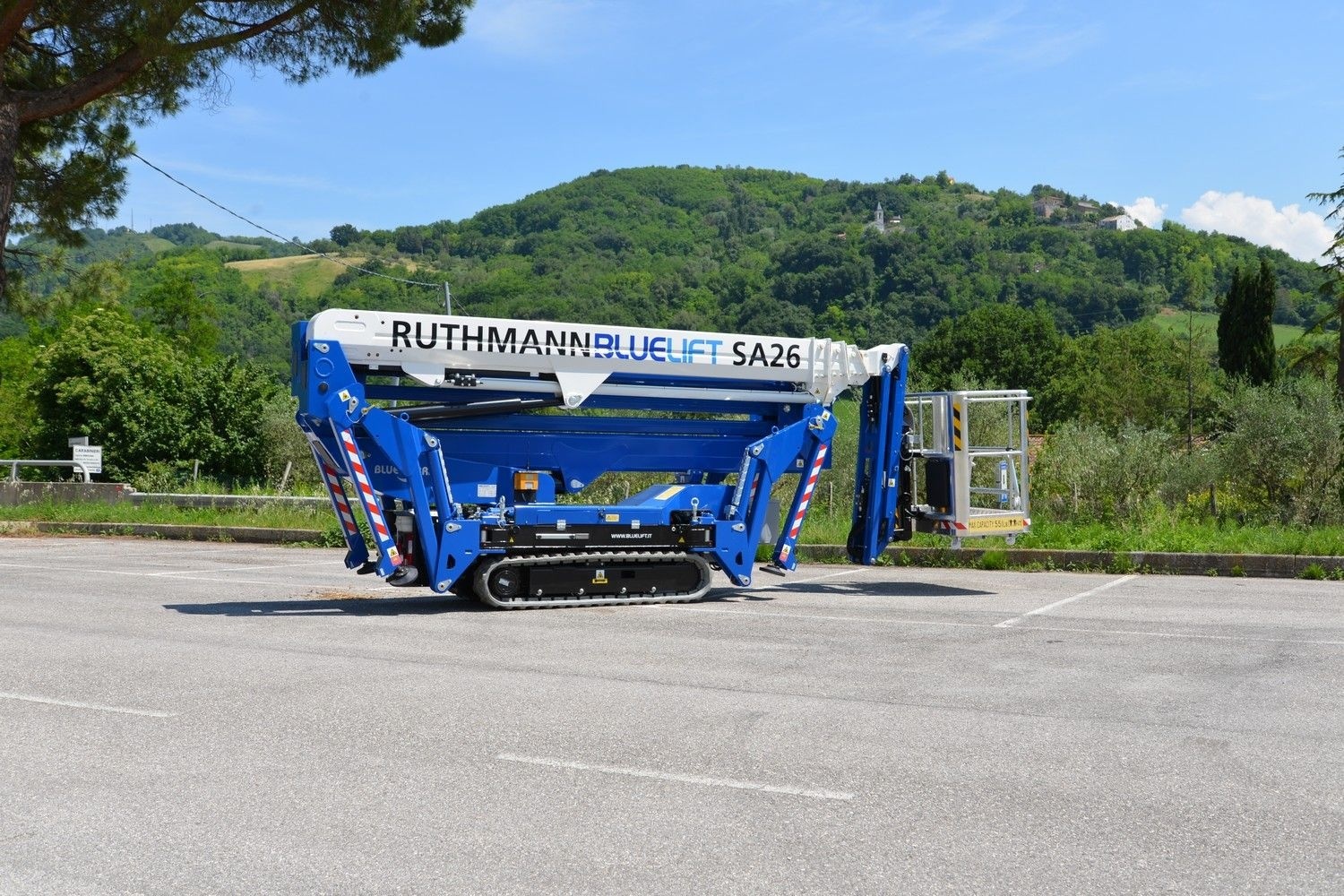

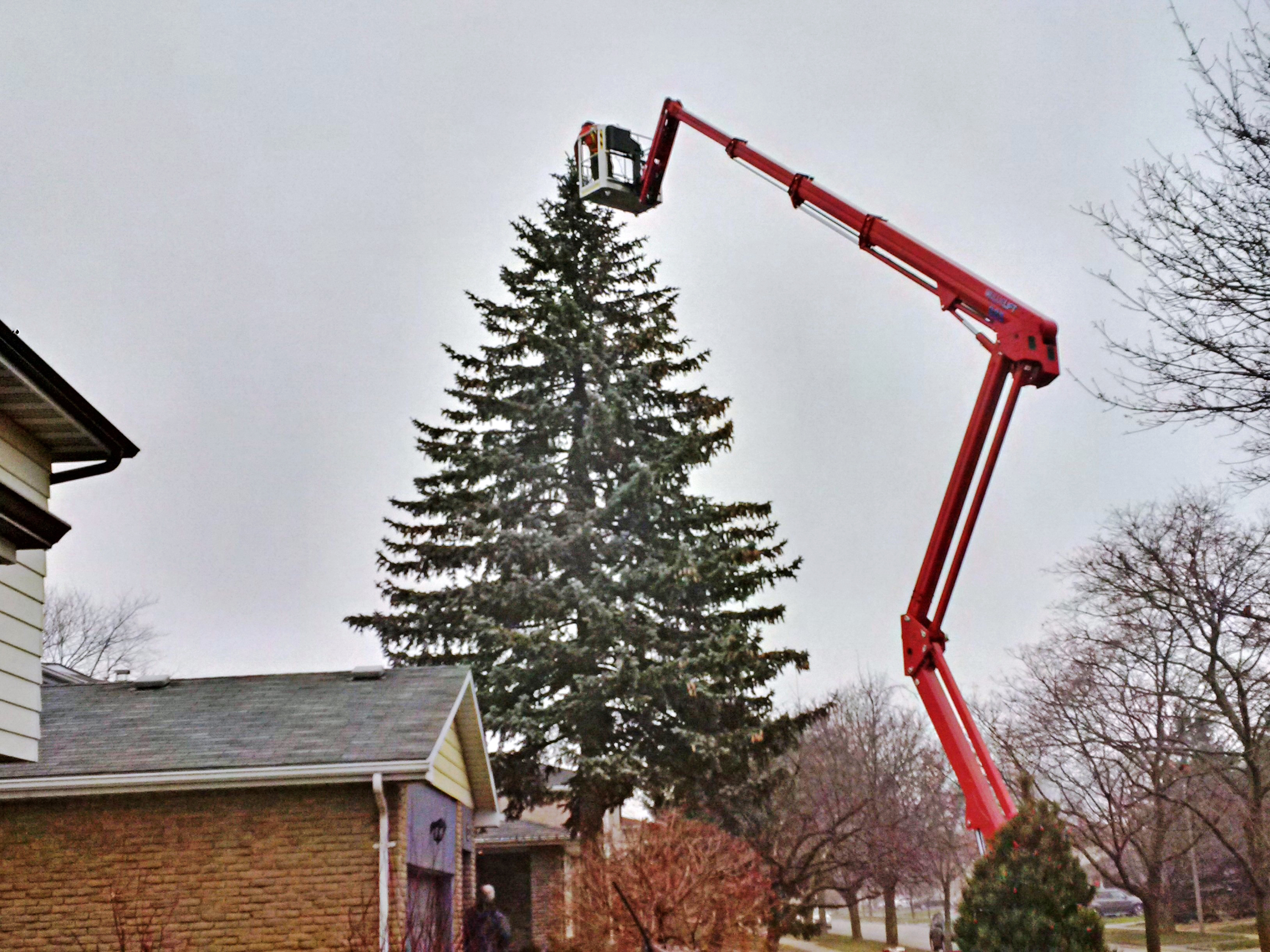

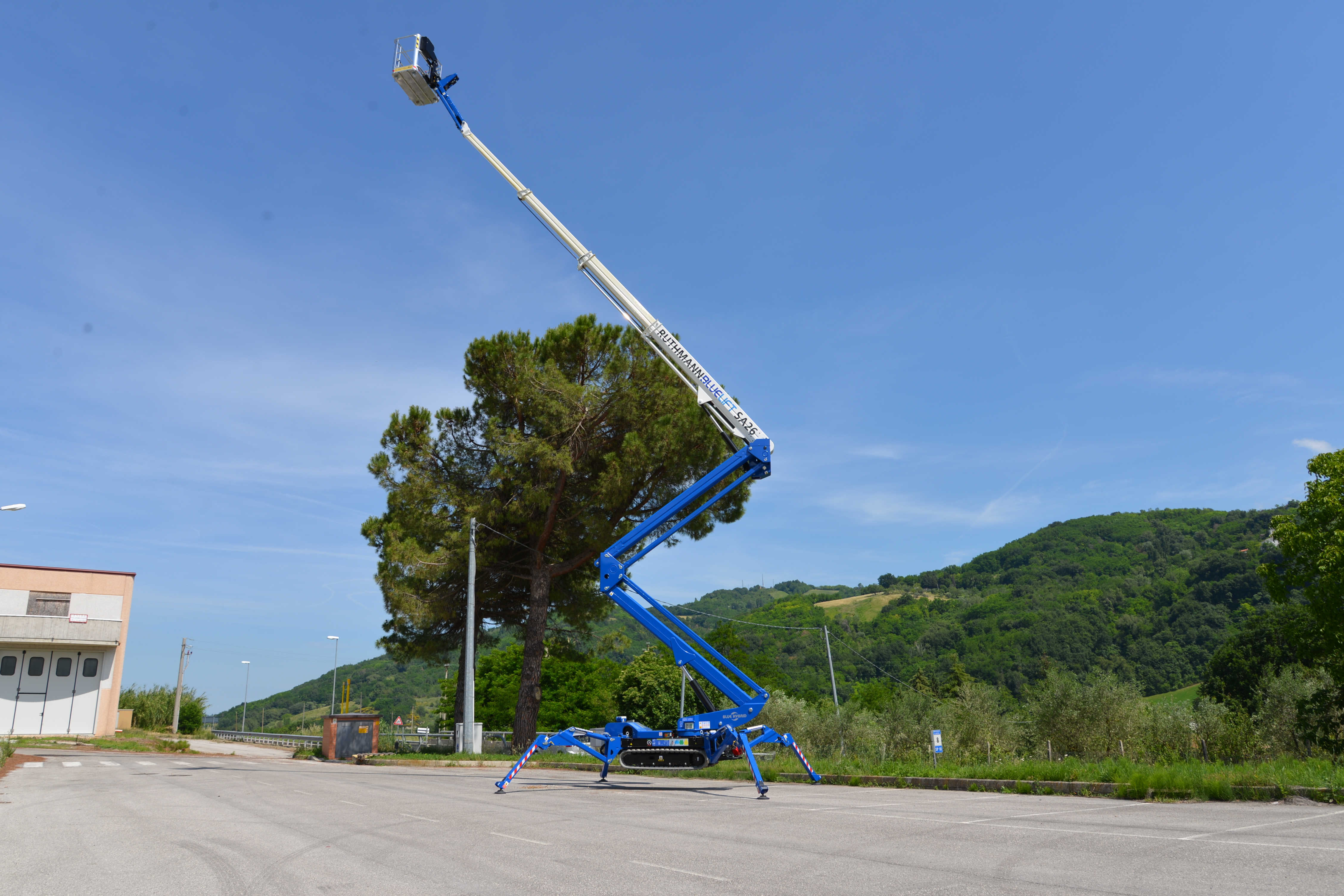

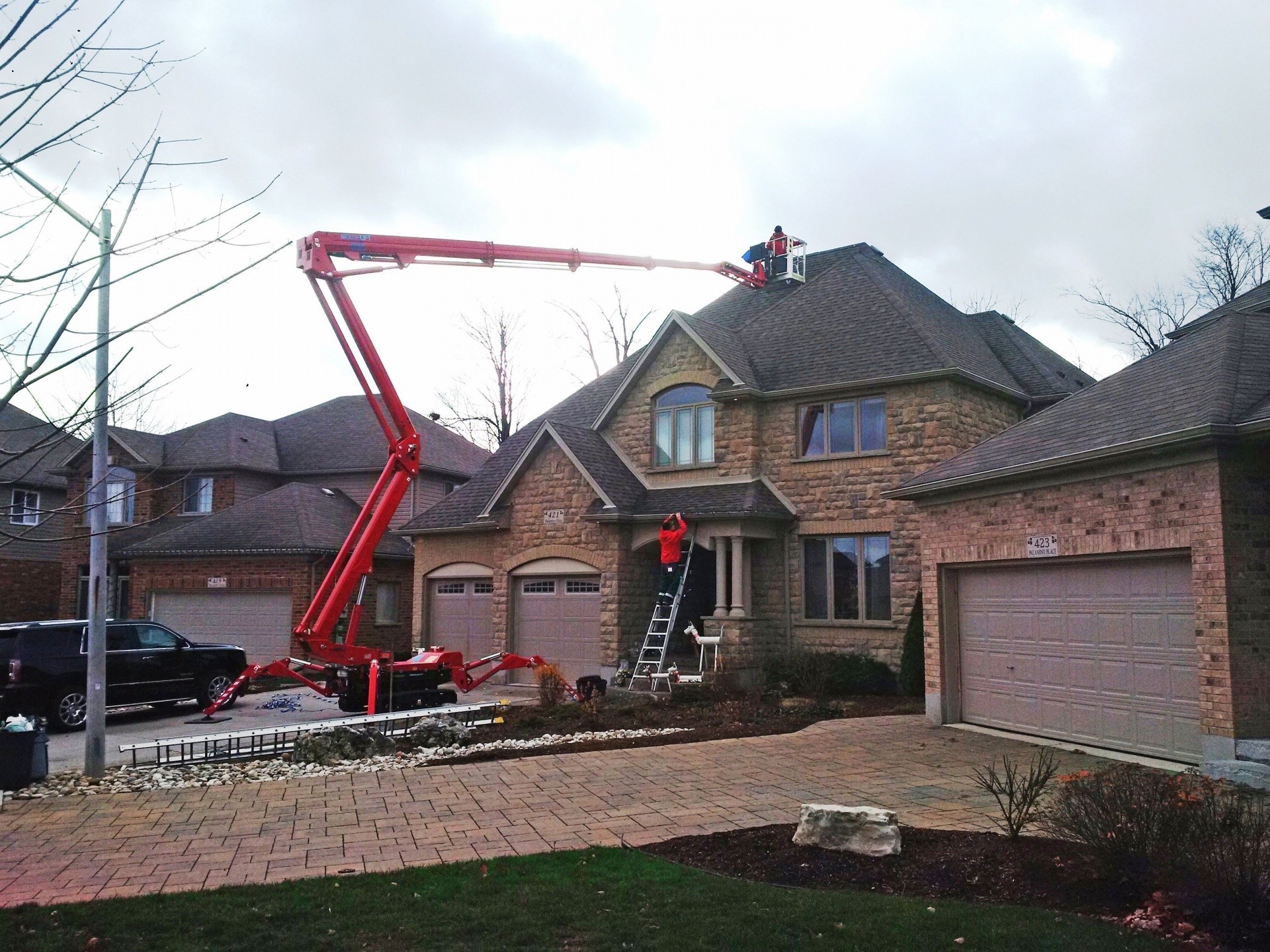

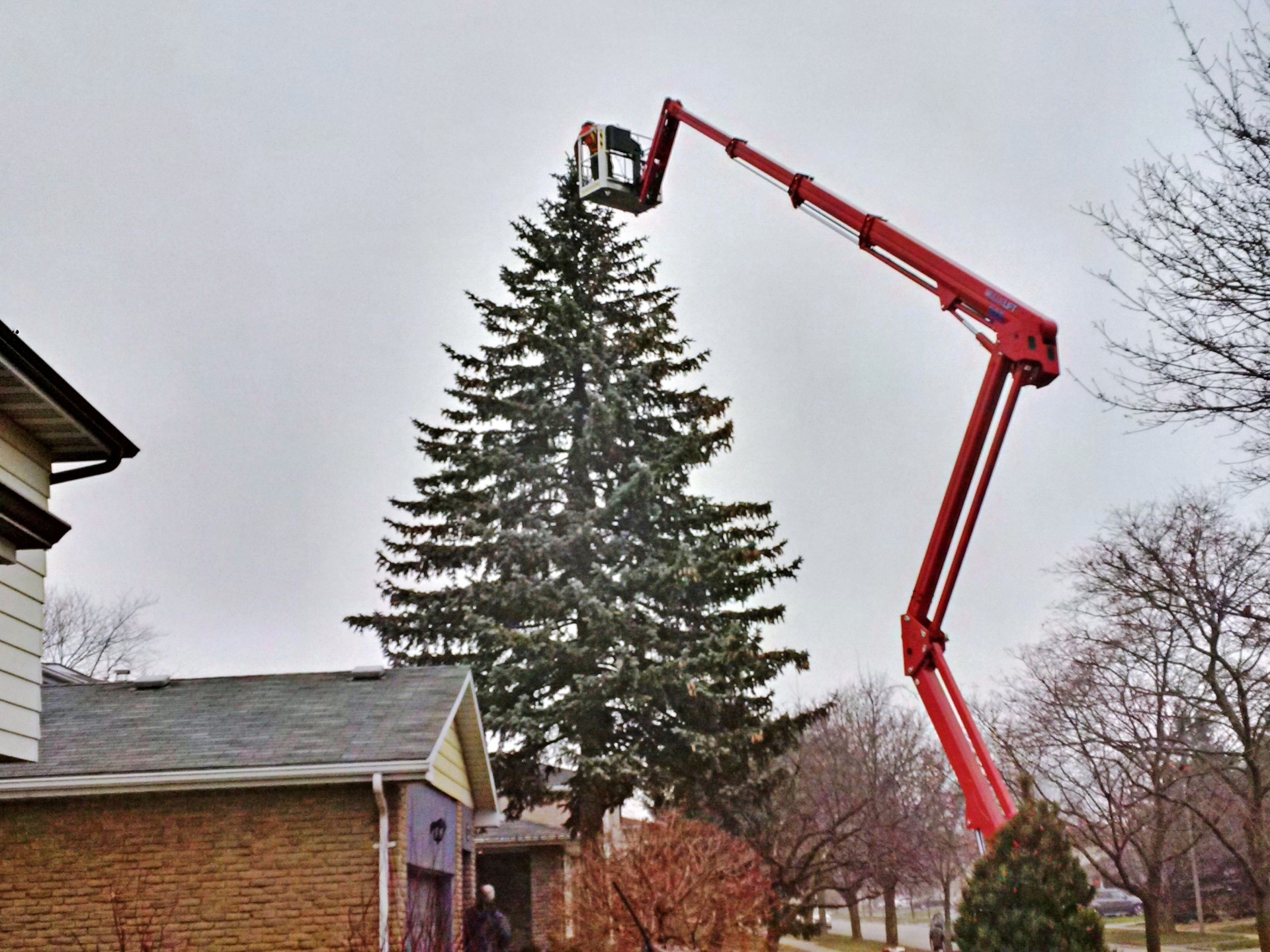

Gallery
