Glazing robot Winlet 350

Installation of glass and other translucent structures weighting up to 350 kg

350 kg

2.8 m

0.79 m

1450 х 690 х 1270 mm

Buy Купить в лизинг

Compare

Delivery to any point in Russia and CIS countries (delivery by Arlift or other transport company)

The time and cost of shipping the equipment consists of several factors such as availability of Arlift, availability in stock, final destination. All information must be specified before purchasing.

For more details about delivery and payment

Catalog. Glass robots. pdf

Areas of application of the Arlift technique. pdf

Технические параметры

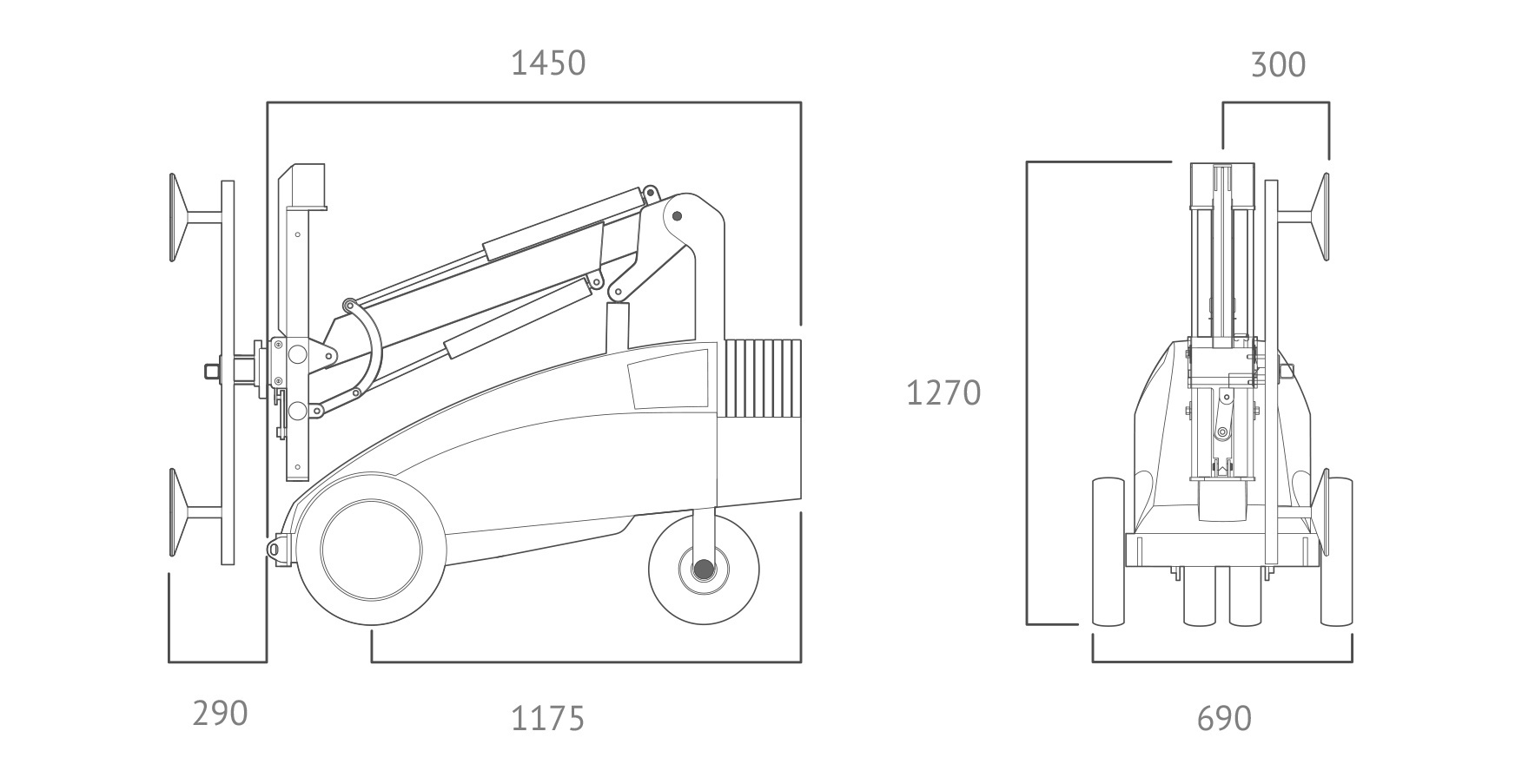

Габариты

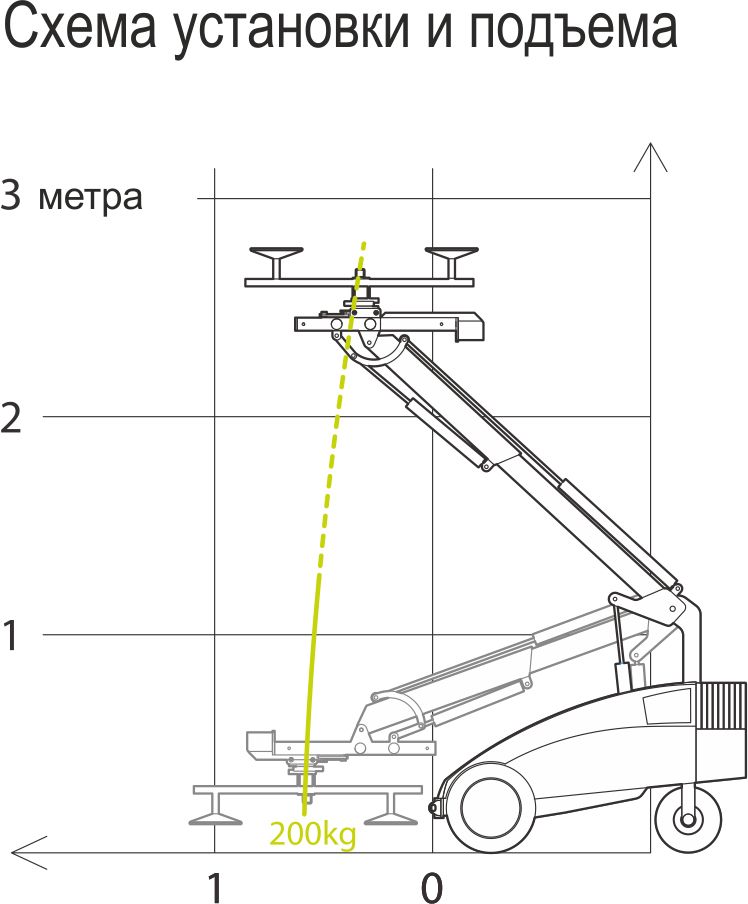

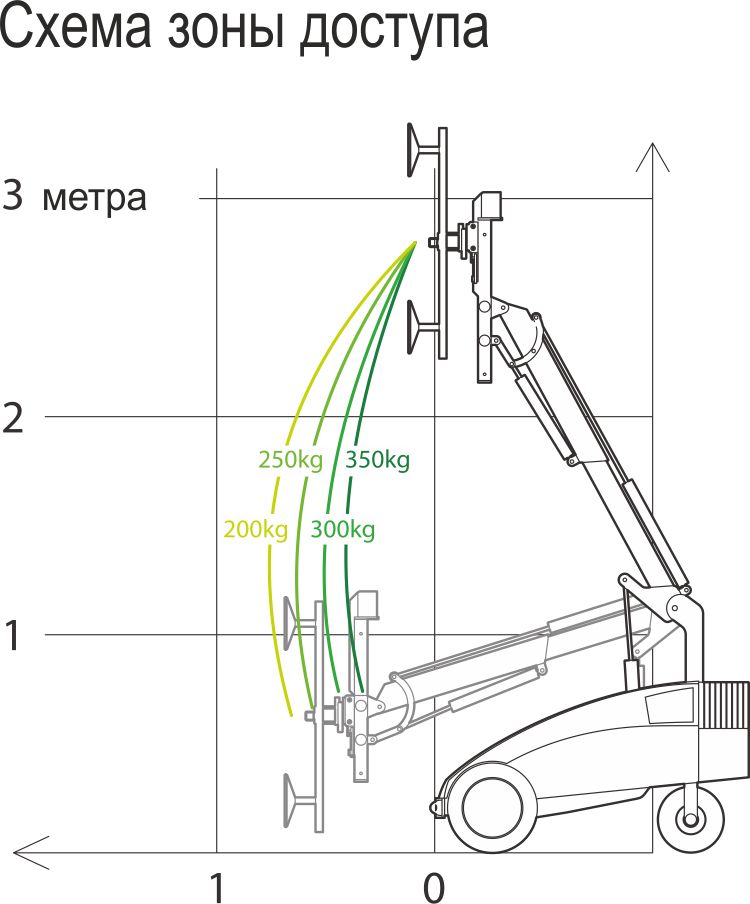

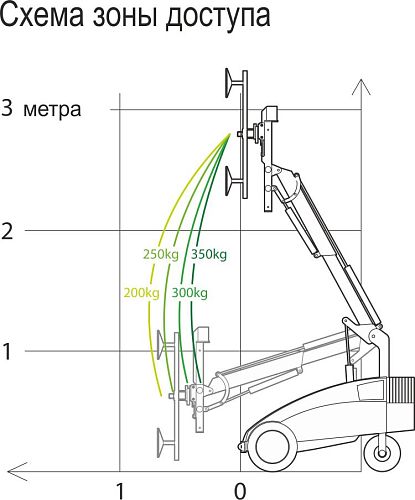

Диаграммы

Lifting capacity

350 kg

Vertical reach

2.8 m

Horizontal reach

0,79 m

Weight

495 kg

Rotation

360 °

Battery life

battery/charging from the mains (220 W)

Battery

2 x 95 A/h

Size

1450 х 690 х 1270 mm

The tilt function

180В°

Sucker

4 x 270 mm

Guarantee

1 year

Tasks

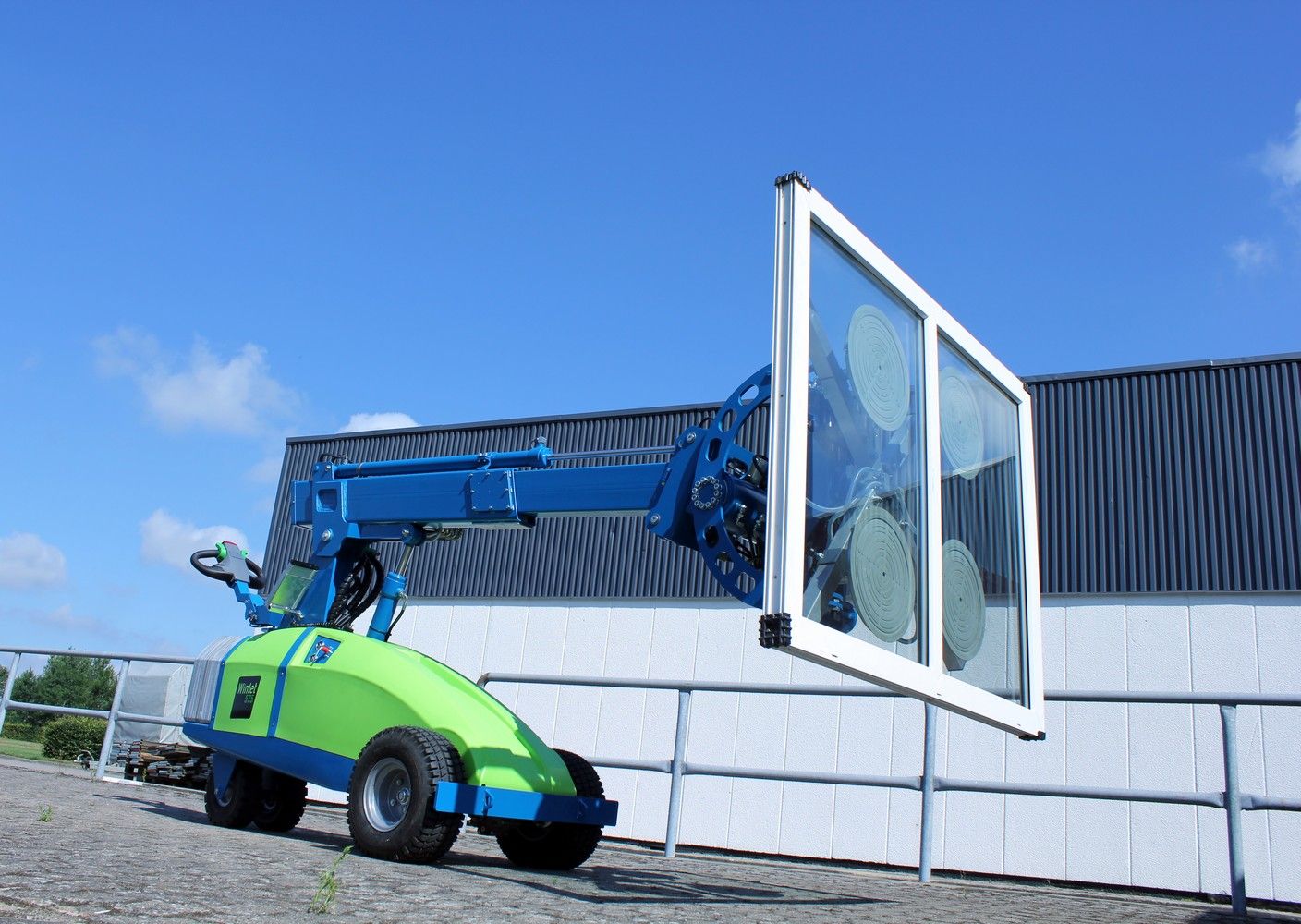

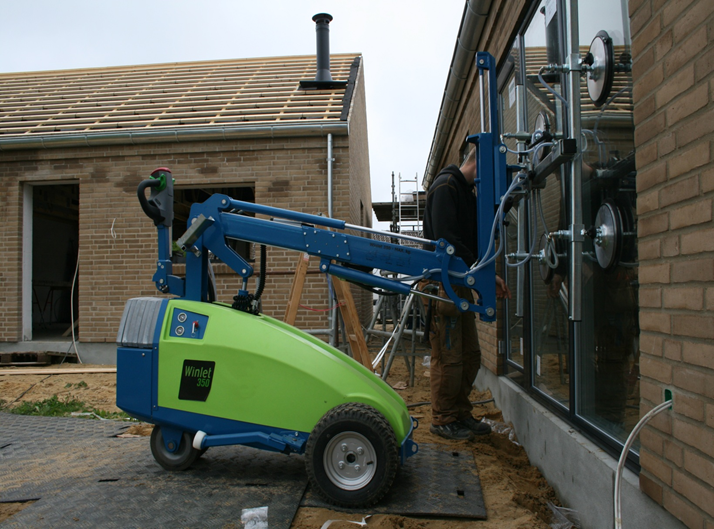

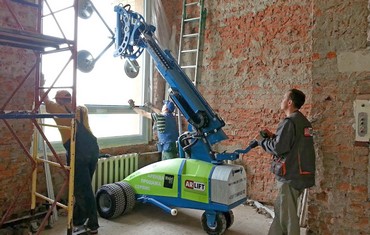

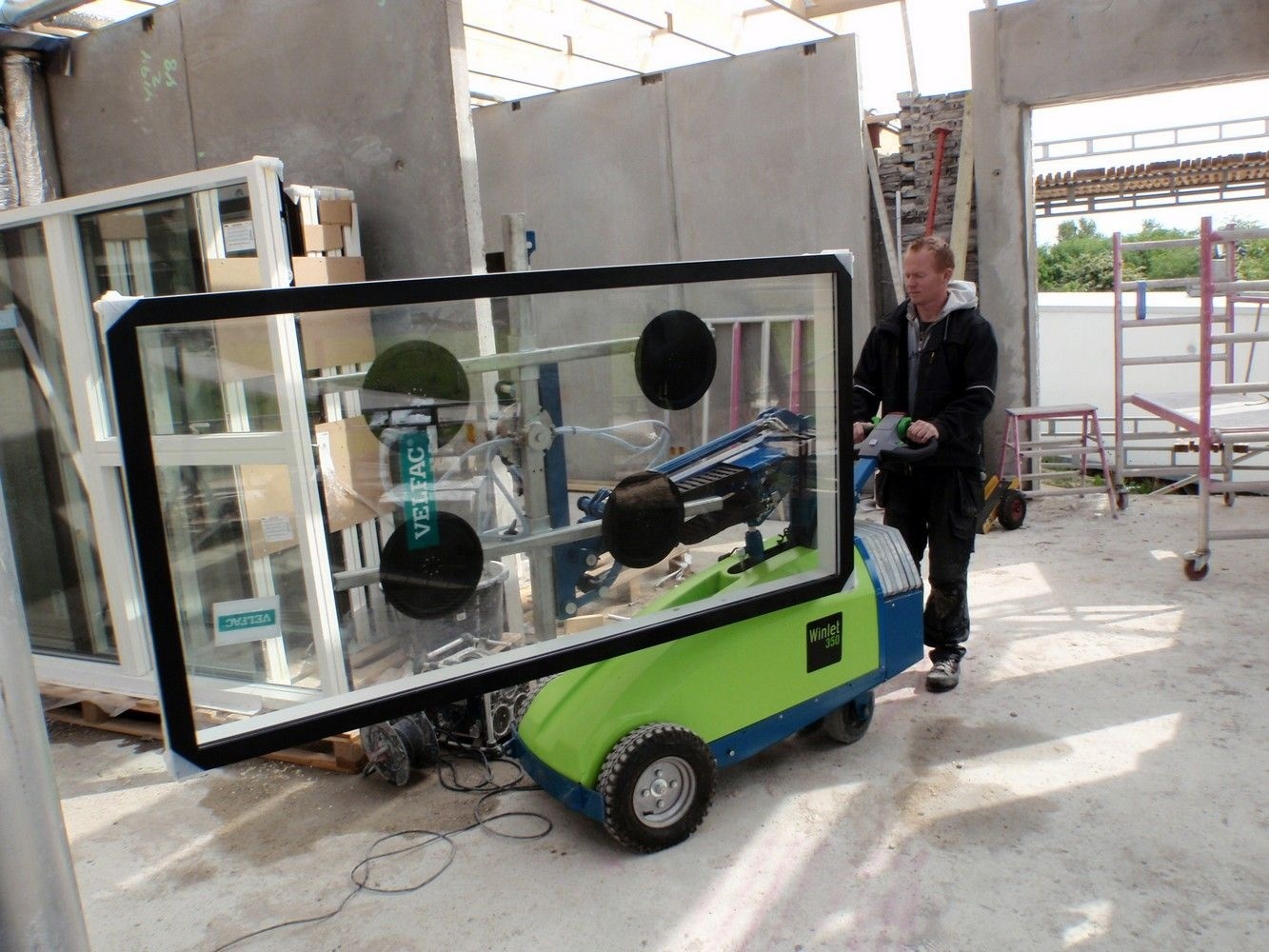

GLASS INSTALLATION WEIGHTING UP TO 350 kg

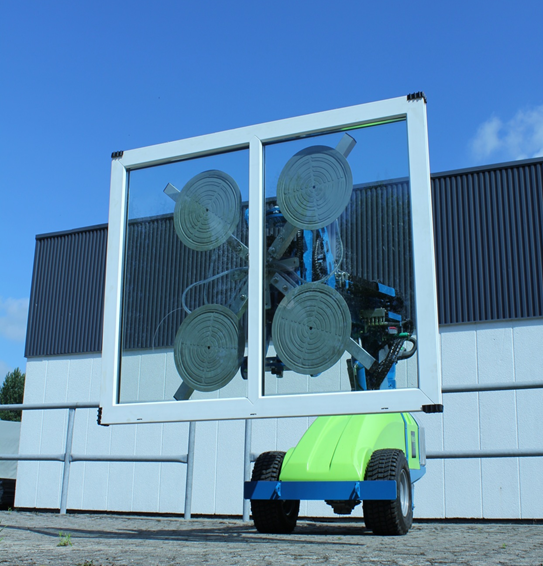

Glazing robot Winlet 350 precisely points glass (secure it). Place of installation may be corrected in details and rotated at 360°.

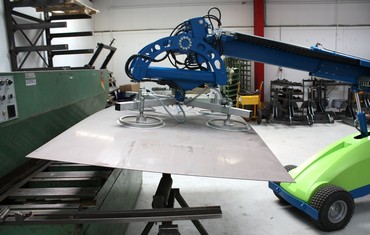

ISTALLATION OF SMOOTH IMPERMEABLE MATERIALS (STONE, PLEXIGLASS)

Glazing robot performs works not only with glass, but also with other smooth polished materials: stone, plexiglass and even wood

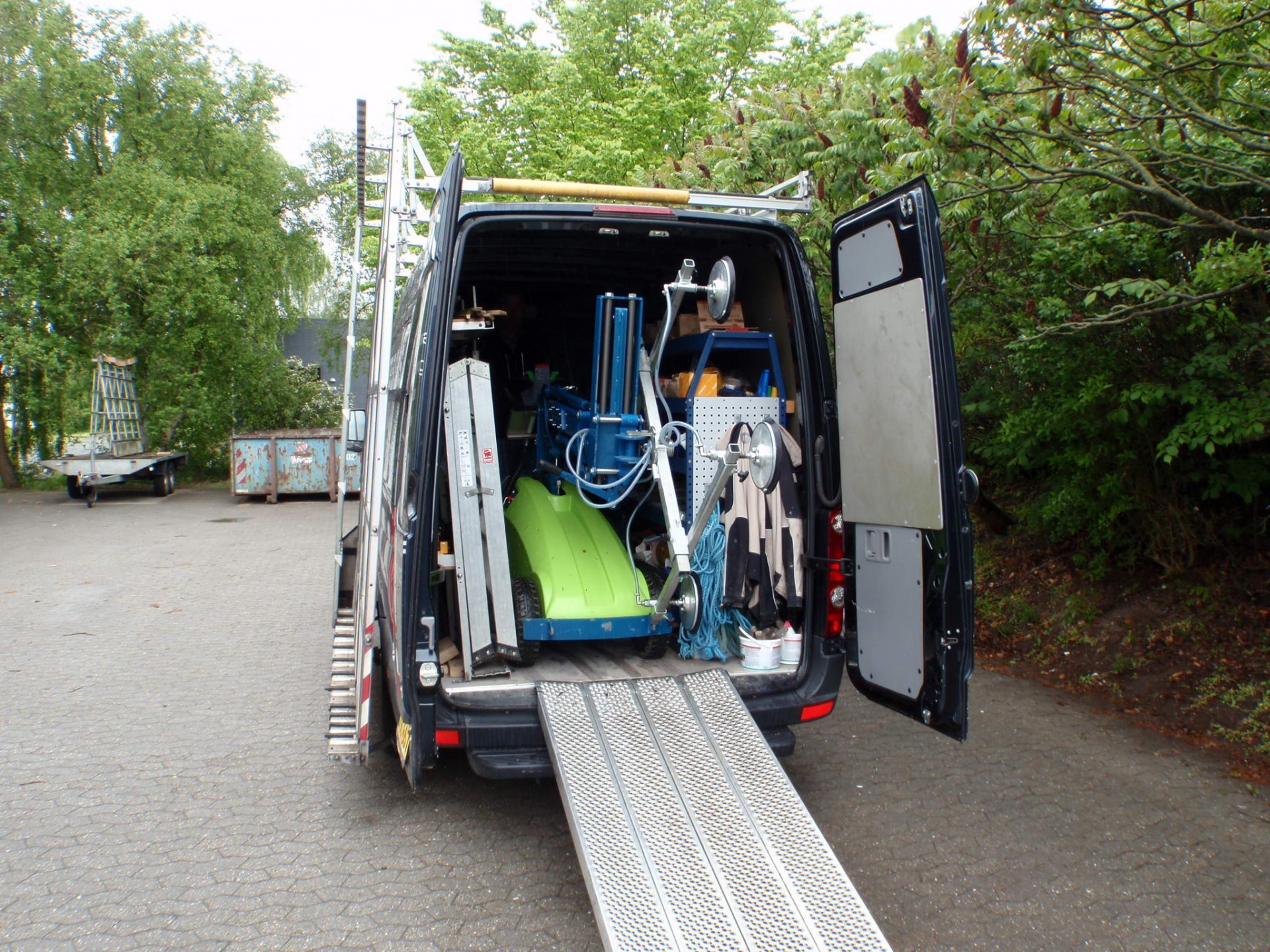

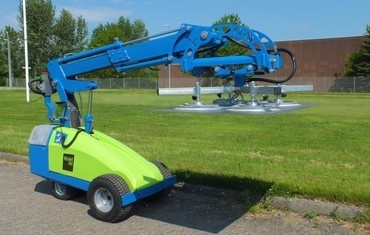

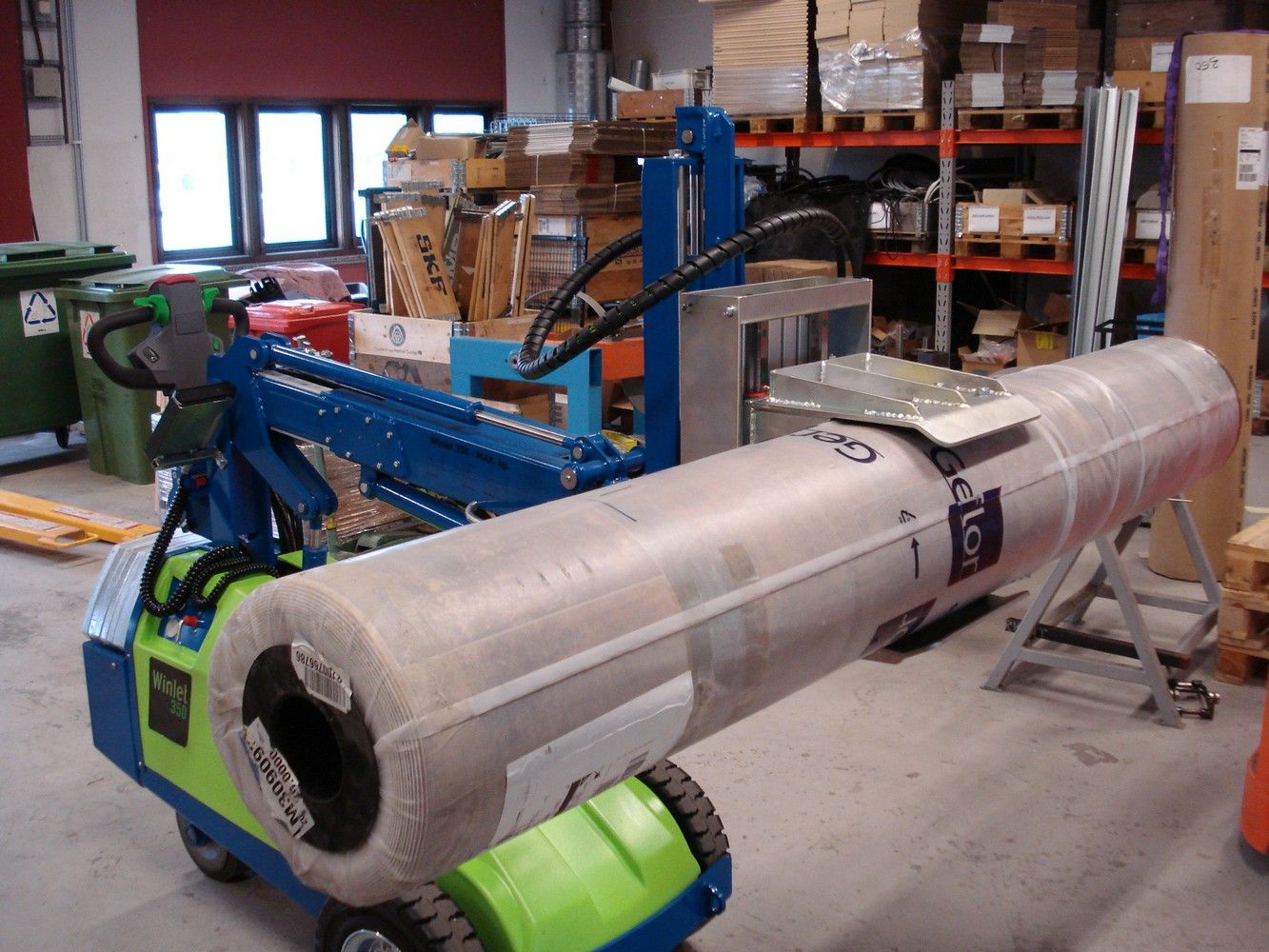

TRANSPORTATION AND HANDLING WITH CARGO

Compact and manoeuvrable glazing robot quickly and easily rises up and moves cargo (glass, stone, plexiglass). Excellently suitable for glazing shop-windows, verandas, facades

Functional benefits

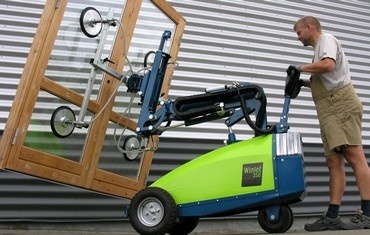

COMPACT SIZE

allows glazing robot to pass through narrow passages, to move on narrow walks in garden

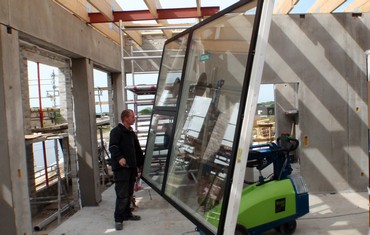

OPERATION USING BATTERY SUPPLY

provides low noise level and allows to work inside premises

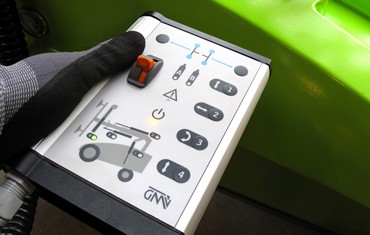

INTELLIGENT CONTROL

controls charge level in batteries and the loading of vacuum gripper system

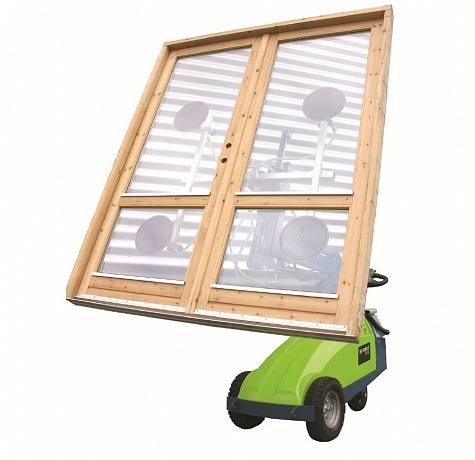

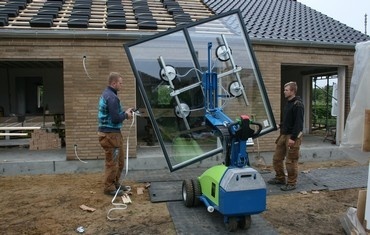

GLASS ROTATION AT 360°

allows to correct place of installation, precisely pointing glass

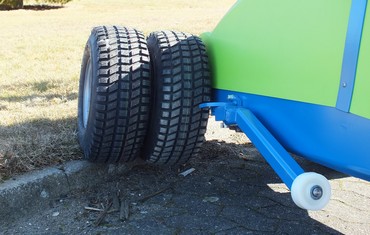

DOUBLE WHEELS

provides increased machinery stability at surface

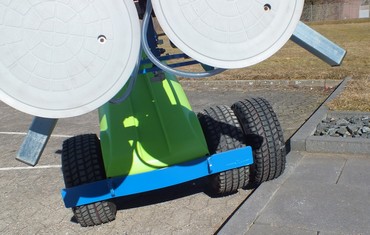

AUTOMATED SYSTEM OF MACHINERY HOUSING CONTROL

signalizes if machinery tilting exceeds 5°
